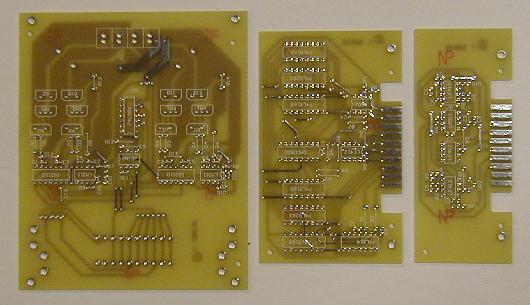

This is the board set for one axis. The board on the left is the amp the one in the middle is the error generator and the one on the right is the PID filter. Parts list and layout for the individual boards can be found by clicking on the picture of the board. The assembled controller will take up an area of 4 3/8” Wide by 5 1/4” Long and 3” High. |
![]() |
|||||
|
|
|
![]() |

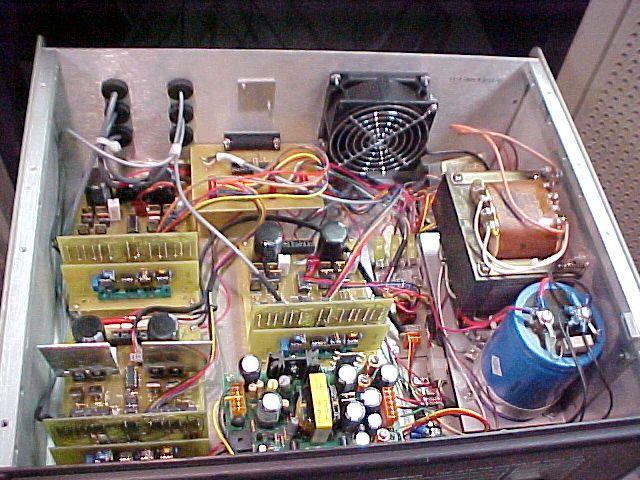

This picture shows the front of the case and the power supplies for the 3 axis servo system. The control cards and optocoupler board are not installed in the case so it is easier to see the other components. |

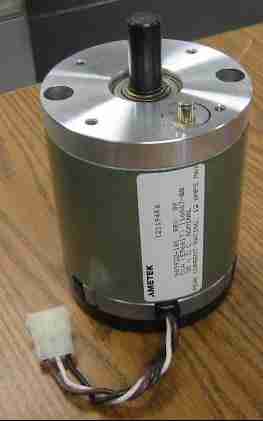

Both of the servo motors I have for sale are surplus but bran new. I have both motors in stock with US Digital encoders mounted on them. The E2 series encoder are used and have a encoder resolution range of 50 to 1000 lines per revolution. The smaller of the two is a 24v Clifton Precision motor that works well on machines the size of a mill drill or a Shoptalk, I think they would be overkill for a Sherline. The other motor is a 38v Ametek Servo motor, these motors will work for full sized machines. |
