Bridgeport page
Please support keeping this Bridgeport rebuild page going by donating a little.
|
Pic's |
| 01/18/2002 - Z axis |
| 21 |

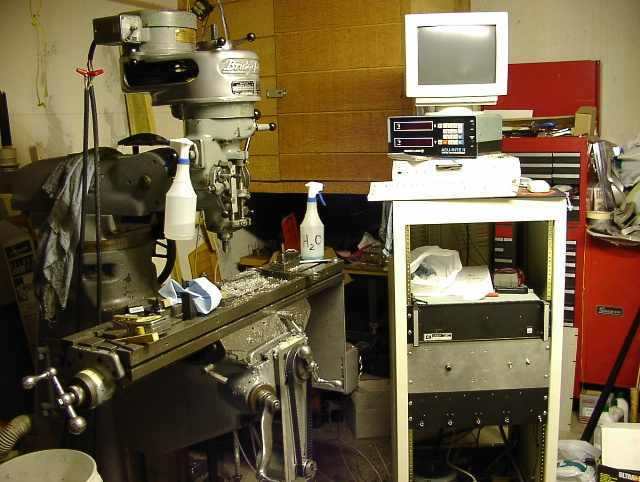

| 01/02/2002 - Overall view of CNC system. |
| 20 |

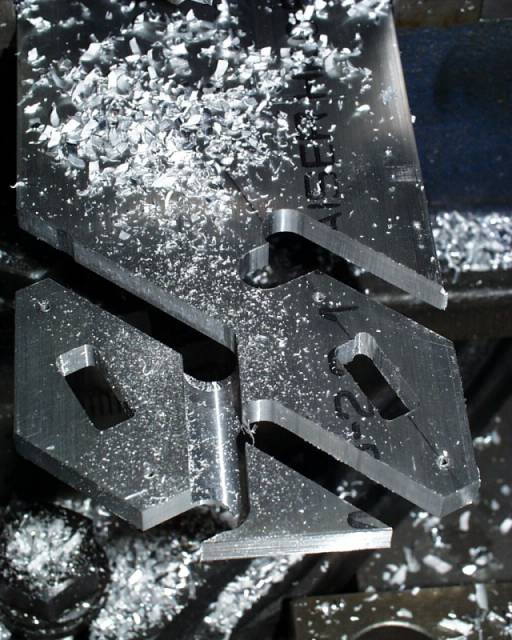

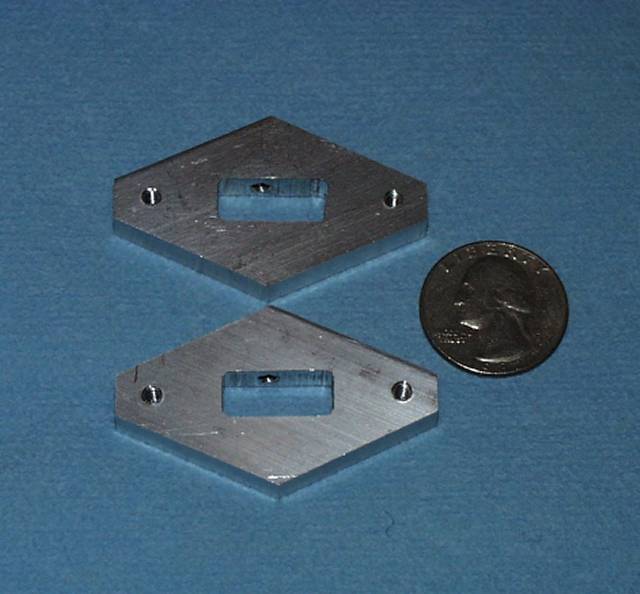

| 01/22/2001 - The first parts manually machined on my rebuilt mill. |
| A, B |

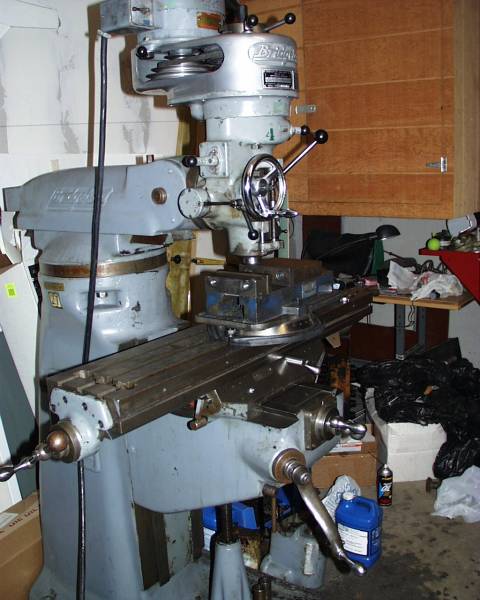

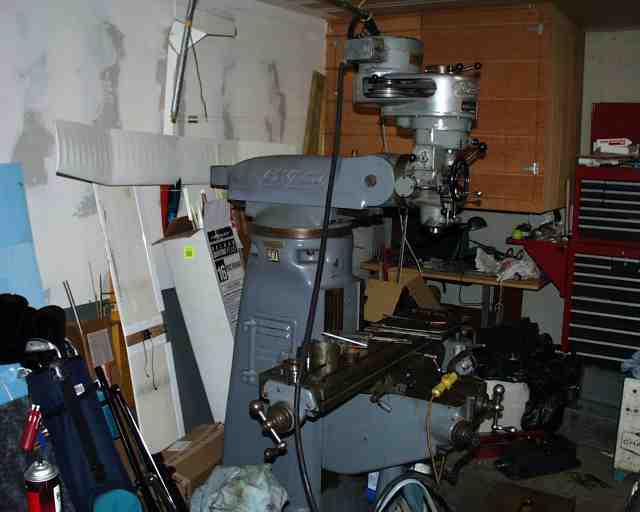

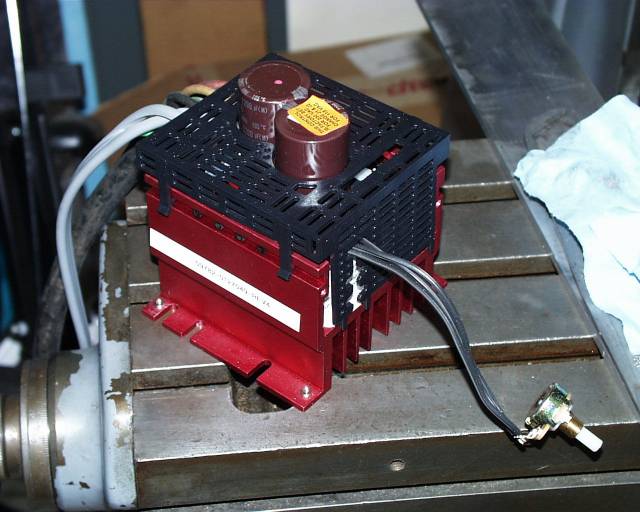

| 01/22/2001 - The Bridgeport completely rebuild and somewhat cleaned up. |
| 18, 19 |

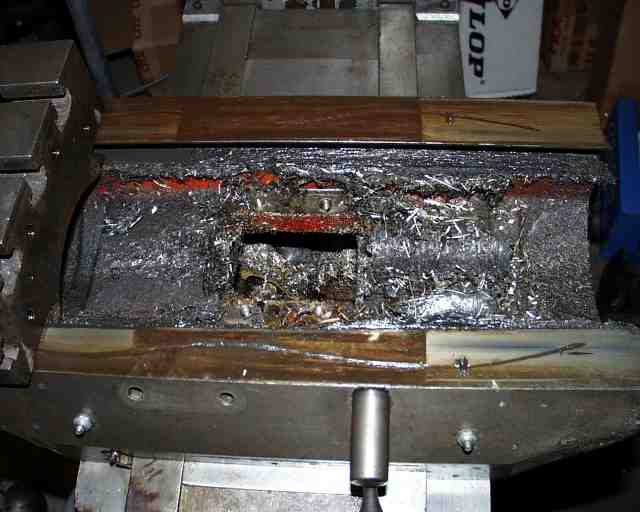

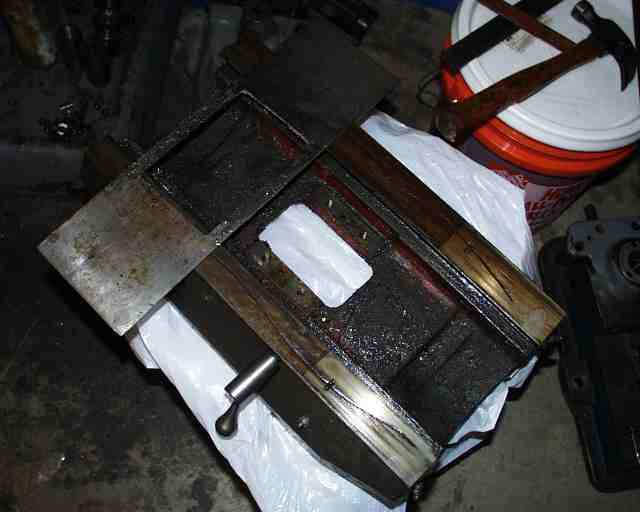

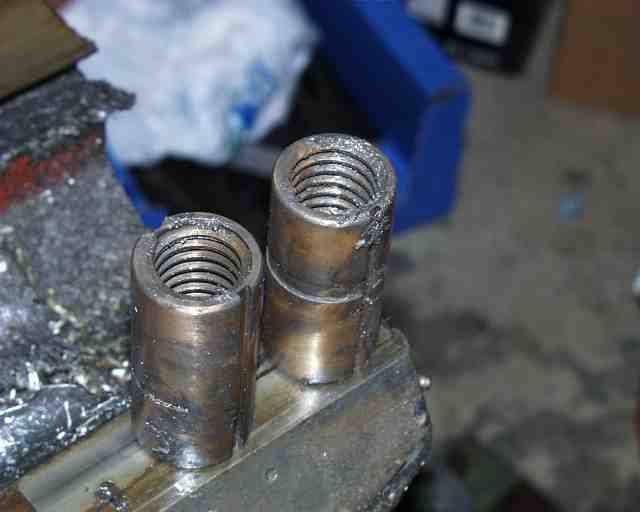

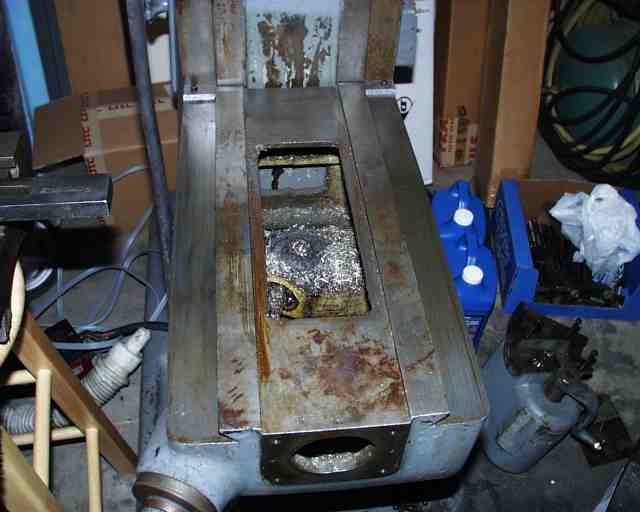

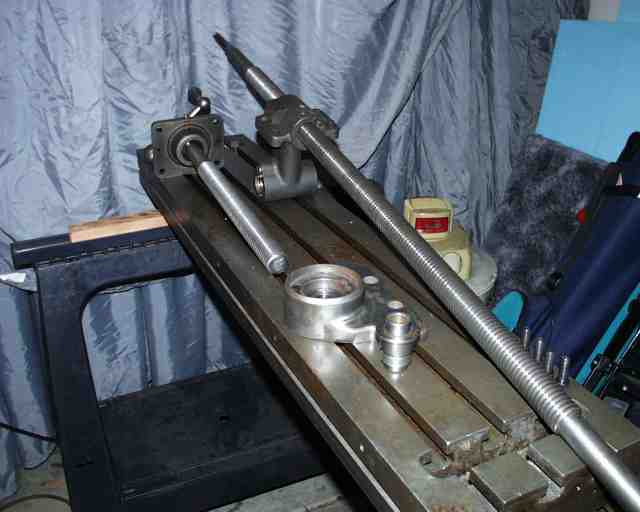

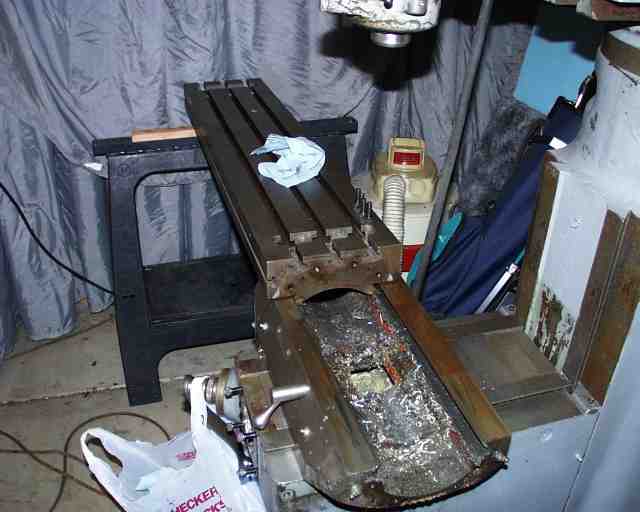

| 12/30/2000 - Disassembly of the table. New Screws, installed new nuts. Lots of cleanup required. |
| 10, 11, 12, 13, 14, 15, 16, 17 |

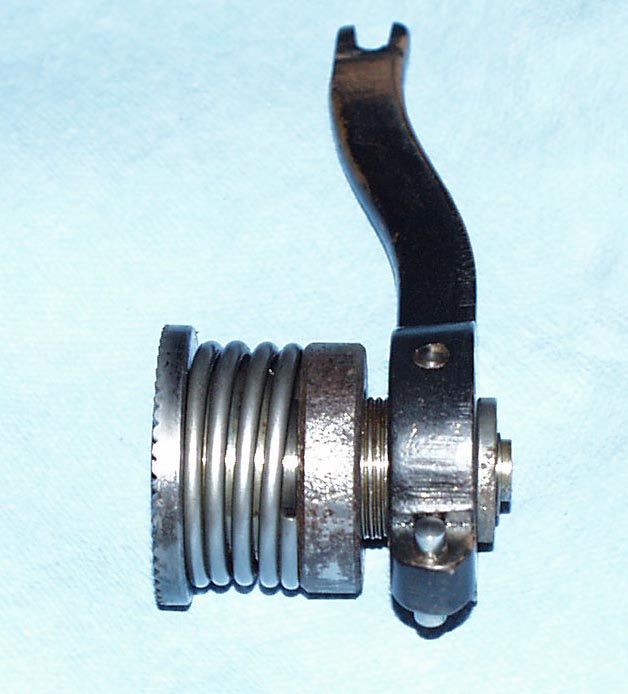

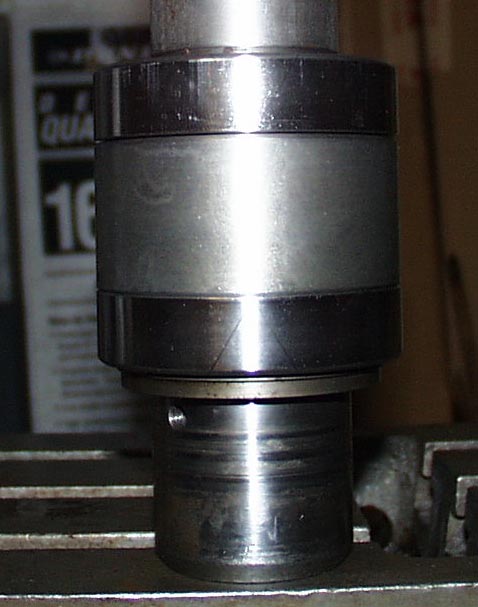

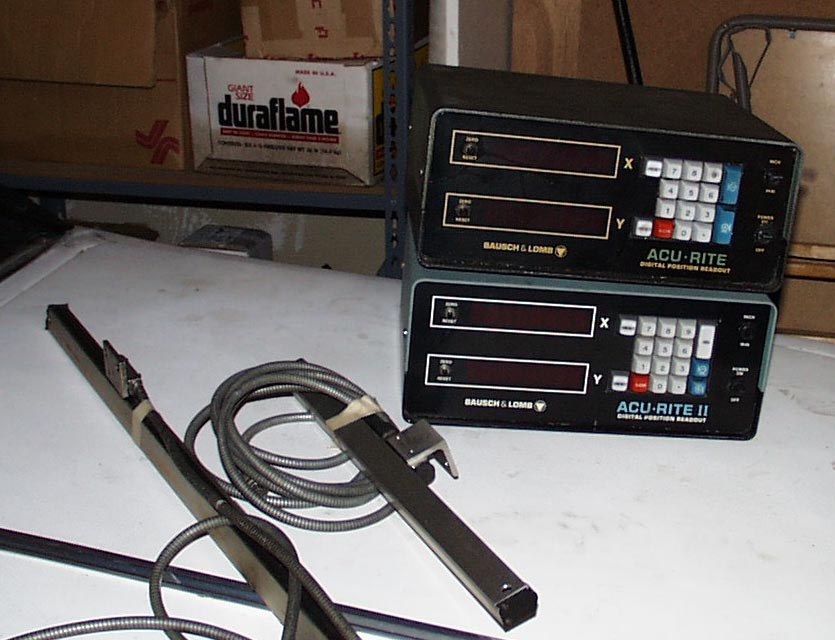

| 12/09/2000 - Re-assembly of the head. |
| 5, 6, 7, 8, 9 |

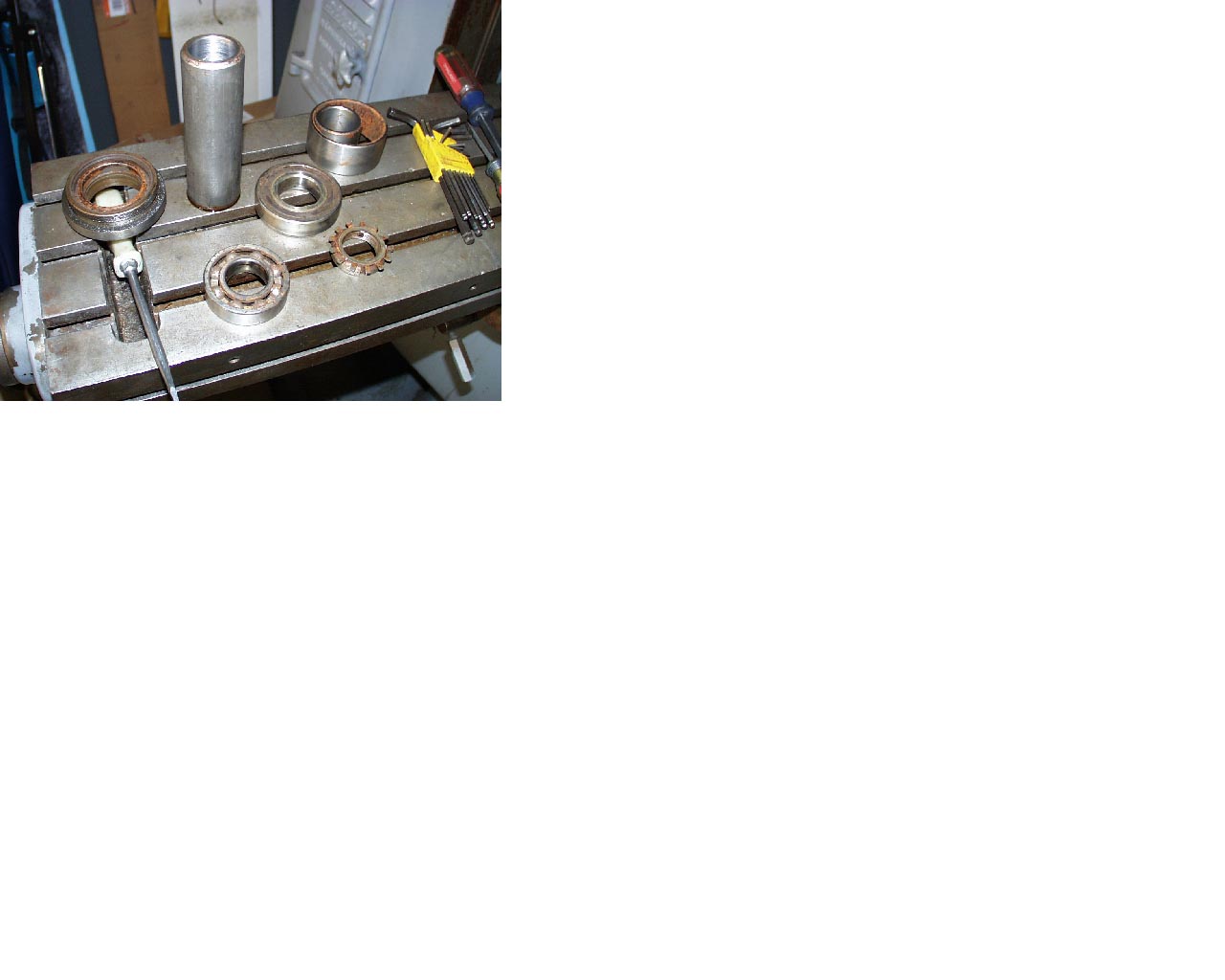

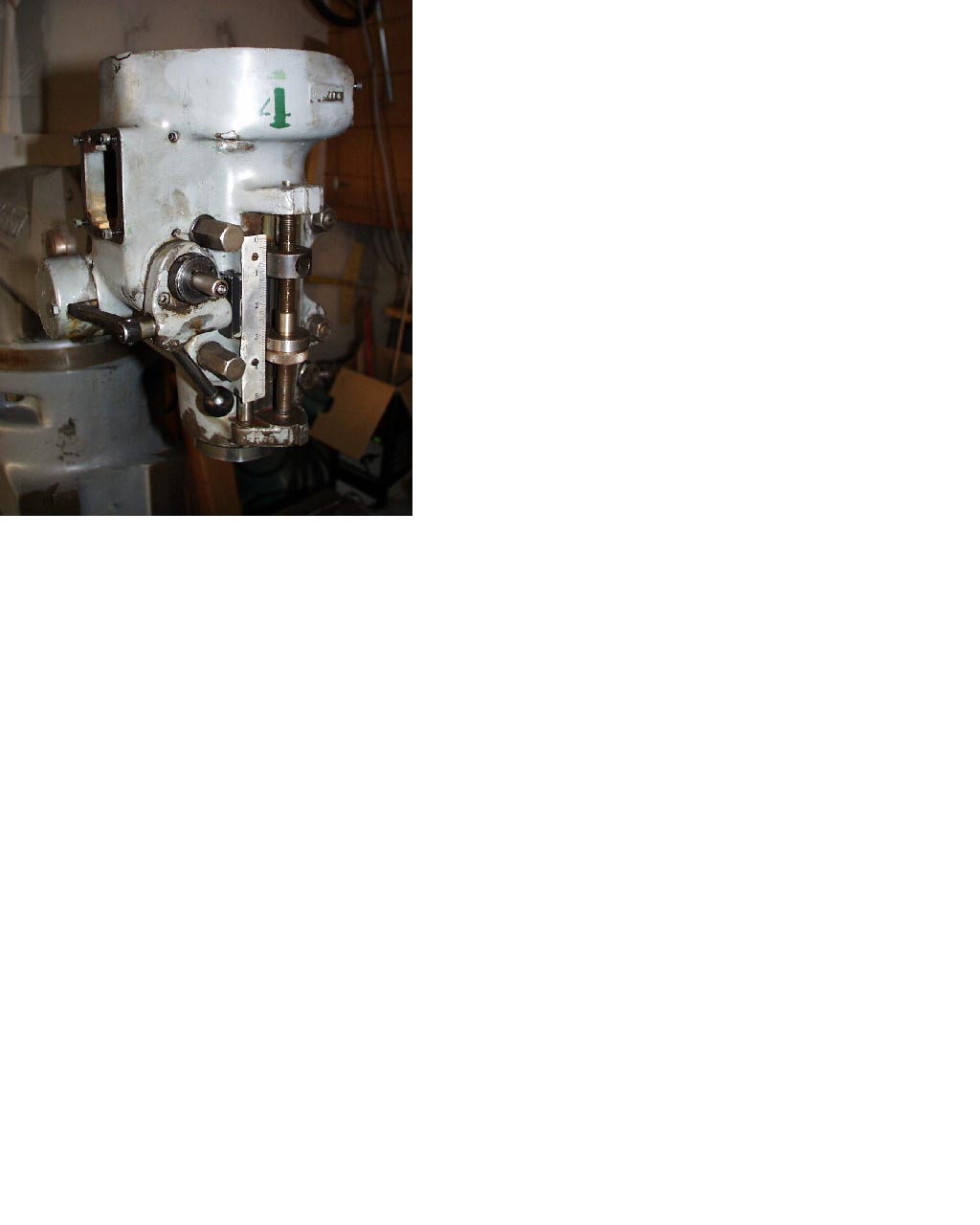

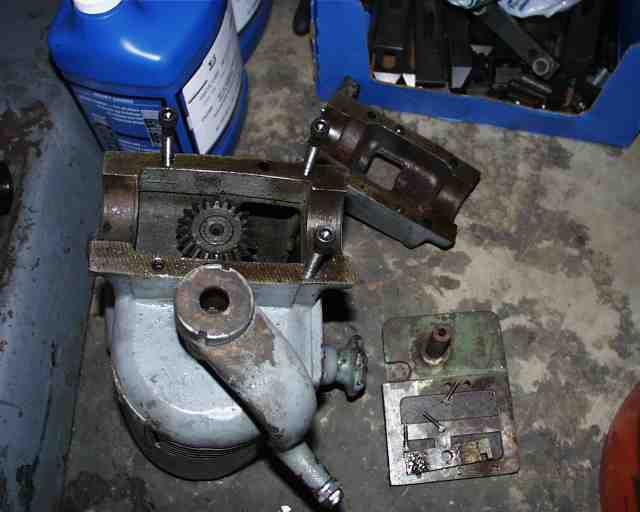

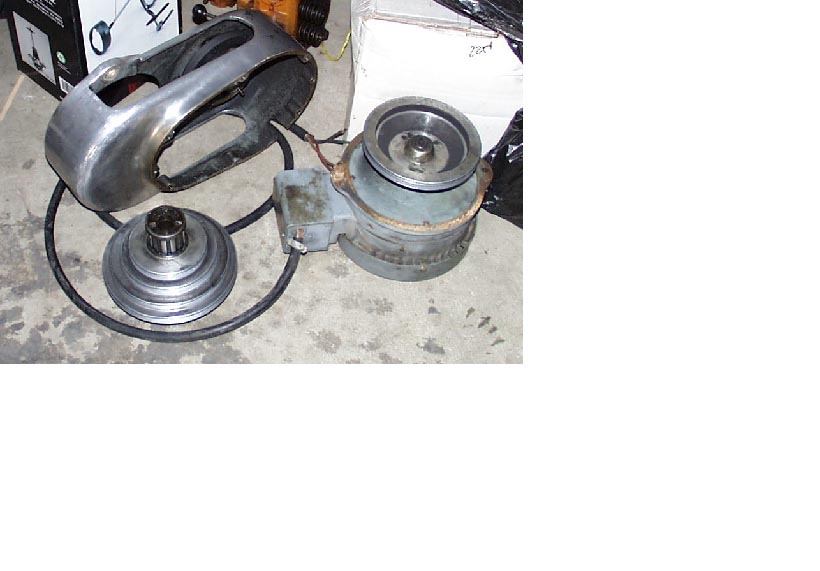

| 11/20/2000 - Disassembly of the head. Lots of cleanup required. |
| 1, 2, 3, 4 |
| Rebuild Costs | |
|---|---|
| 1957 V-Ram Bridgeport Mill | $974.25 |
| Mill Delivery | $250 |
| Quill Handle | $22 |
| Quill Spring | $30 |
| Ball | $7.50 |
| Ball | $5 |
| Cam Ring Pins | $12 |
| Splined Gear Hub | $50 |
| Labor | $50 |
| J1 Head Bearings | $396 |
| Rebuilt Spindle Bearing Assy | $176.50 |
| Draw Bar | $12 |
| Backgear Timing Pulley | $40 |
| Handle Wheel | $20 |
| Quill Lock Handle | $6.10 |
| X-Y Nuts | $96 |
| Table End Plate | $40 |
| Collar | $20 |
| Y Axis ACME Screw | $85 |
| X Axis ACME Screw | $60 |
| Y Axis Bearing | $10 |
| Safety Clutch Spring | $10 |
| Timing Belt Flange | $25 |
| Hand Wheel Clutch Ball | $1 |
| Compression Spring | $3 |
| Hand Wheel Screw | $5.40 |
| Lever Screw | $10 |
| Quill Housing Adj gear | $155 |
| Collet Align Screw | $6.40 |
| Felt Spindle Washer | $12 |
| Quill Skirt | $12 |
| Drawbar Washer | $19 |
| 2 Motor Locknut Handle Assy's | $72 |
| 2 Washer Head Screws | $2.50 |
| Worm Shaft Key | $2.75 |
| Way Felt Wiper Kit | $20 |
| 2 Socket cap screws | $1 |
| 6 Oval Head Screws | $2.70 |
| Beveled Z-Axis gears | $75 |
| Shipping | $36.82 |
| Rebuild Sub-Total | $2833.92 |
| Tooling Costs | |
| Accurite II DRO | $135 |
| Clamp Kit | $65 |
| Kurt 6 inch Vice | $200 |
| Vice Swivel Base | $30 |
| 6 R8 Collets | $36 |
| Variable Frequency Drive | $200 |
| Ballscrews | $672.00 |
| Tooling Sub-Total | $1338.00 |
| Grand Total | $4171.92 |
